Online Assessment Form Activity: Creating Complex Forms (Workplace Assessment)

Online Assessment Form Activity: Creating Complex Forms (Workplace Assessment)

Workplace Assessment Form Set-up is an example of a complex form. These are forms which incorporate different types of fields and functions to complete an assessment.

To set-up a complex form, follow the steps below:

Note: You need a Trainer or Manager access to perform this action

Setting Up the Assessment Activity

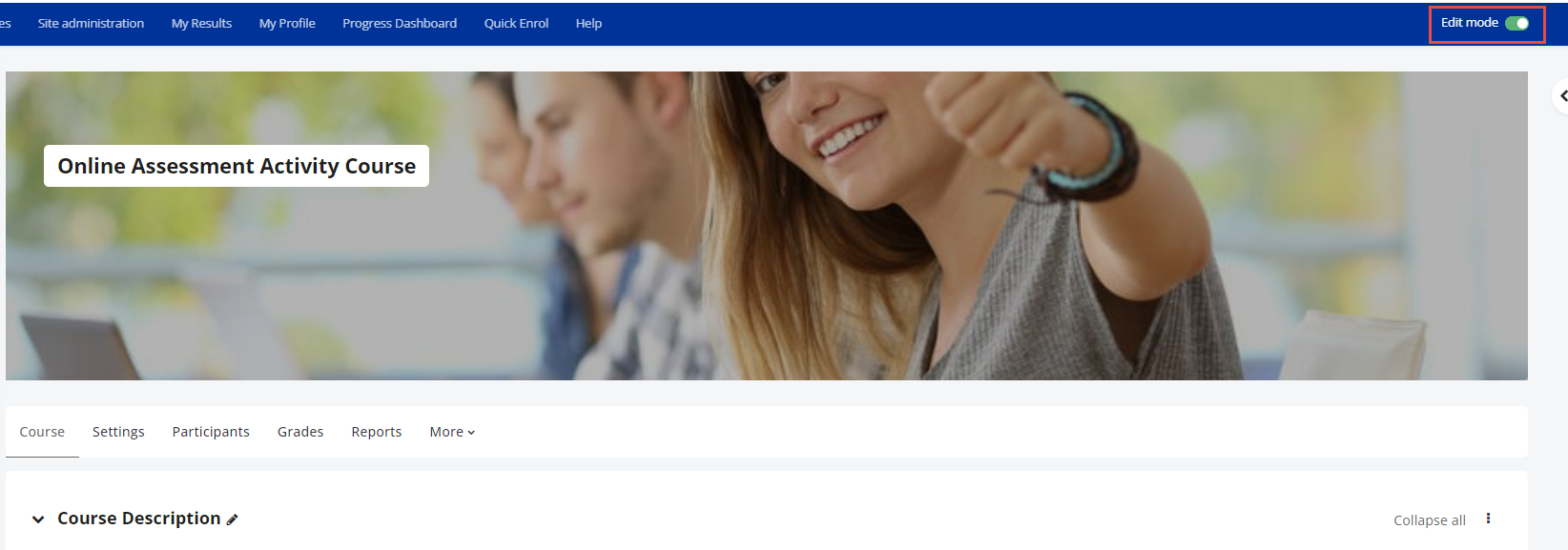

Step 1: Go to the course you wish to add your assessment form to. Click the Edit mode toggle to turn on editing..

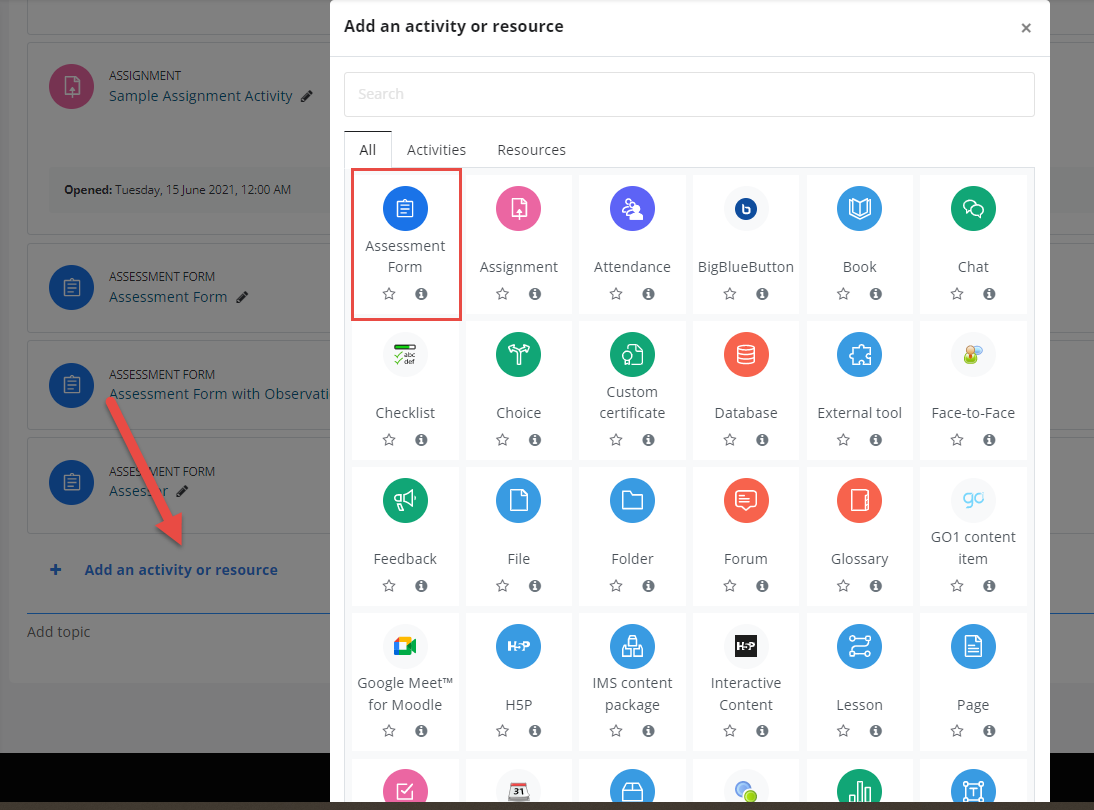

Step 2: Click Add an activity or resource. Then select "Assessment Form" from the list of activities.



Step 3: Fill out all the information needed and adjust the settings to complete the form.

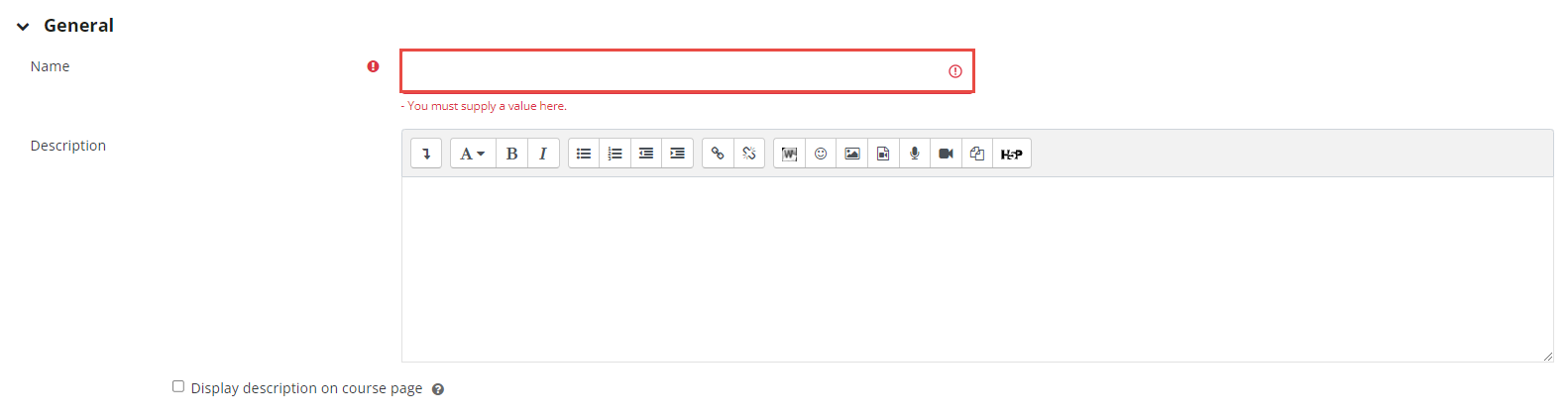

General


 Name*
 (Mandatory field) enter the name of the Assessment Form activity in the Name text box.
 Description
 Enter the relevant description in the "Description" text area that describes the
 Assessment Form if needed.
 Display description on course page
 (checkbox) If enabled, the description of this activity will be shown on the course page.

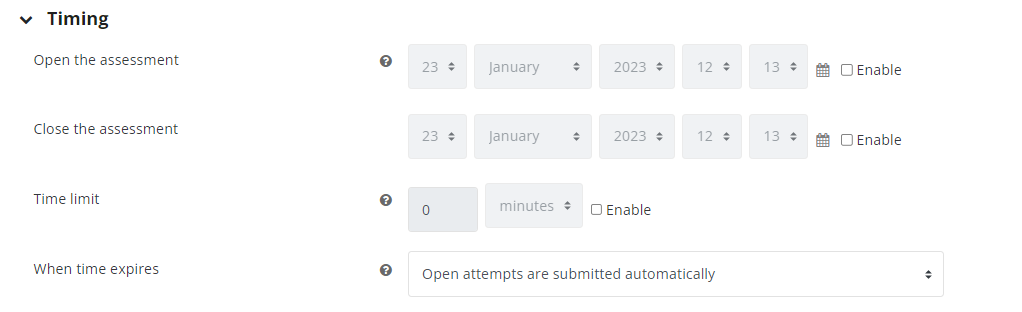

Timing

 Open the assessment
 Tick the enable button if you want to set the date and time for the assessment to open.
 Close the assessment
 Tick the enable button if you want to set the date and time for the assessment to close.
 Time limit
 If enabled, a countdown timer will be displayed in the navigation block while student is
 taking the assessment.
 When time expires
 There are two options for this setting when time expires:

 1. Open attempts are submitted automatically (default)
 2. Attempts must be submitted before time expires (or they are not counted)

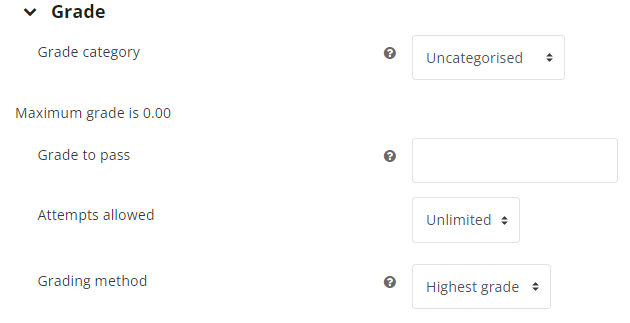

Grade



 Grade category
 This settings controls the category in which this activity's grades are placed in the gradebook
 Maximum grade is 0.0
 The Assessment Form automatically counts the maximum grade based on the Task Fields
 being used.
 Grade to pass
 This setting determines the minimum grade required to pass. The value is used in activity and course
 completion, and in the gradebook, where pass grades are highlighted in green and fail grades in red.

 During this set-up, leave Grade to pass blank for the time being. You must return to it once you're done
 building the form.
 Attempts allowed
 Options are from 1-10 and Unlimited
 Grading Method
 When multiple attempts are allowed, the following methods are available for calculating the final
 assessment grade:
  1. Highest grade of all attempts
  2. Average (mean) grade of all attempts
  3. First attempt (all other attempts are ignored)
  4. Last attempt (all other attempts are ignored)

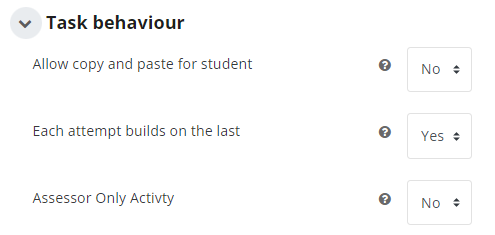

Task behaviour



 Allow copy and paste for student
 If this setting is enabled, students can execute copy and paste during assessment.
 Each attempt builds on the last
 If multiple attempts are allowed and this setting is enabled, each new assessment attempt will contain the
 results of the previous attempt. This allows an assessment to be completed over several attempts.
 Assessor Only Activity
 Enable this setting for any activity that does NOT require a student to make a submission and ONLY the
 Assessor will be completing the Assessment Activity.

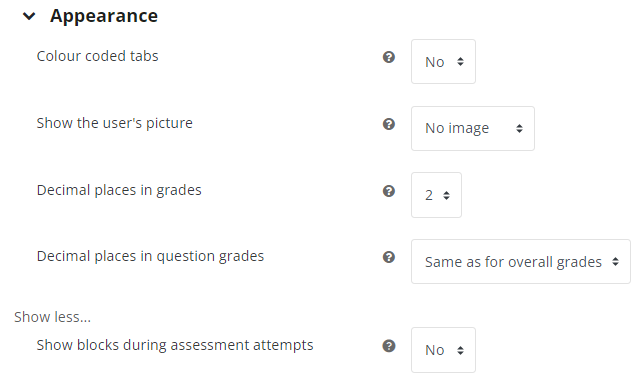

Appearance




 Colour Coded Tabs
 Tabs are colour coded to show progress of data entered.
 Show the user's picture
 If enabled, a student's name and picture will be shown on-screen during the attempt, and on the review
 screen, making it easier to check that the student is logged in as themselves in an invigilated (proctored)
 exam.
 Decimal places in grades
 This setting specifies the number of digits shown after the decimal point when displaying grades. It only
 affects the display of grades, not the grades stored in the database, nor the internal calculations, which
 are carried out to full accuracy.
 Decimal places in question grades
 This setting specifies the number of digits shown after the decimal point when displaying the grades for
 individual questions.
 Show blocks during assessment attempts
 If set to yes, then normal blocks will be shown during assessment attempts.

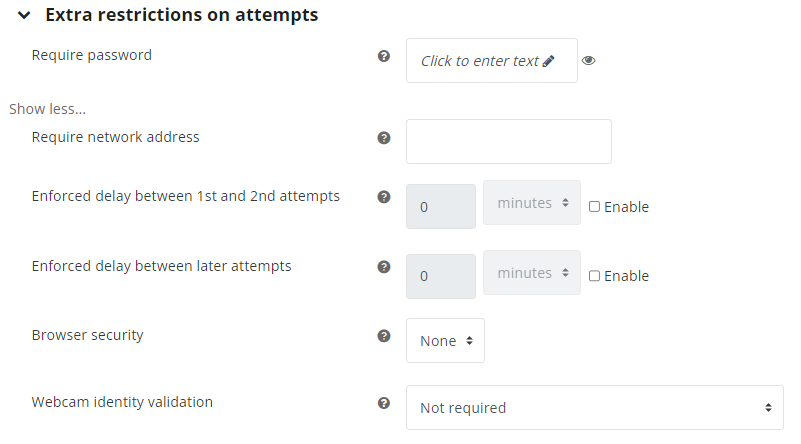

Extra restrictions on attempts



 Require password
 If a password is specified, a student must enter in order to attempt the assessment.
 Require network address
 Assessment access may be restricted to particular subnets on the LAN or Internet by specifying a
 comma- separated list of partial or full IP address numbers. This can be useful for an invigilated
 (proctored) assessment, to ensure that only people in a certain location can access the assessment.
 Enforced delay between 1st and 2nd attempts
 If enabled, a student must wait for the specified time to elapse before being able to attempt the
 assessment a second time.
 Enforced delay between later attempts
 If enabled, a student must wait for the specified time to elapse before attempting the assessment a third
 time and any subsequent times.
 Browse security
 If "Full screen pop-up with some JavaScript security" is selected,
  1. The assessment will only start if the student has a JavaScript-enabled web-browser
  2. The assessment appears in a full screen popup window that covers all the other windows and has no navigation controls
  3. Students are prevented, as far as is possible, from using facilities like copy and paste
 Webcam identity validation
 If you enable this option, students will not be able to start an attempt until they have ticked a check-box
 confirming that they are aware of the policy on webcam. For proctoring purposes, select 'must be
 acknowledge before starting an attempt'

Common module settings




 Availability
 The availability option permits students to view and access assignments and resources, there are two options available:
  1. Show on course page
  2. Hide from students
 ID number
 The ID number can be entered to reference the same ID number from a third-party package especially gradebook.
 Otherwise, the field may be left blank.
 Force Language
 If you force a language in a course, the interface of Moodle in this course will be in this particular language, even if a
 student has selected a different preferred language in his/her personal profile.
 Group mode
 There are three group settings available:
  1. No groups
  2. Separate groups
  3. Visible groups
 Grouping
 Not available if no group mode is selected, if separate or visible grouping is enabled, you will then be given an option to
 Add group/grouping access restrictions.



Restrict access


You can choose one or more of the following restrictions:


Activity Completion




 Completion Tracking
 There are three options available:
  1. Do not indicate activity completion
  2. Students can manually mark the activity as completed
  3. Show activity as complete when conditions are met
 Require View
 Enable this option if you require students to view the activity to be tagged as completed.
 Require Grade
 If enabled, the activity is considered complete when a student receives a grade. Pass and fail icons may be displayed if a pass
 grade for the activity has been set.
 Require minimum score
 Enabling this setting will require a user to have at least the minimum score entered to be marked complete in this SCORM
 activity, as well as any other Activity Completion requirements.
 Require status
 Checking one or more statuses will require a user to achieve at least one of the checked statuses in order to be marked
 complete in this SCORM activity, as well as any other Activity Completion requirements.

 3 checkbox to toggle:
  1. Passed (checkbox)
  2. Completed (checkbox)
  3. Require all SCORMS to return completion status - Some SCORM packages contain multiple components or "scos" - when this is enabled all scos within the package must return the relevant lesson_status for this activity to be flagged complete.
 Expect completed on
 This setting specifies the date when the activity is expected to be completed.

Step 6: Once all required settings are set, Click Save and Display


Step 7: Click Edit Assessment then Create Assessment:



Setting Up Tabs for Instructions

Elements inside tabs can either be graded or not graded. Non-graded tabs are usually tabs which contain general assessment instructions. The steps below detail how to create a tab with general instructions.

You are free to create your assessment form as you need. You may change the colours, template, and fields to be used depending on your assessment needs.
The instructions below are the standard way of how the Online Assessment Activity - Workplace Assessments are built.


Step 8: The Assessment form will open the Design mode. On the right panel of the form editor, click Tabs and rename the current tab.

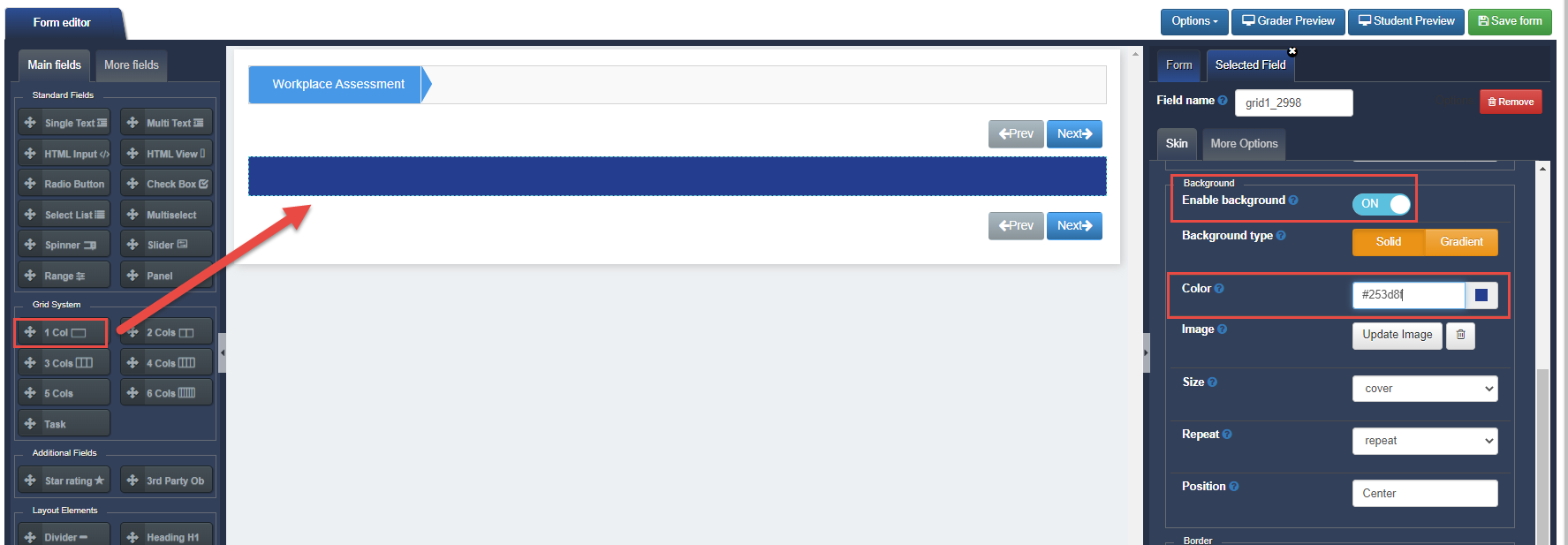

Step 9: In the Design area, add a single column field. Click the blue pencil icon to edit its properties. On the right panel, scroll to Background and to enable the toggle to change the colour to blue:

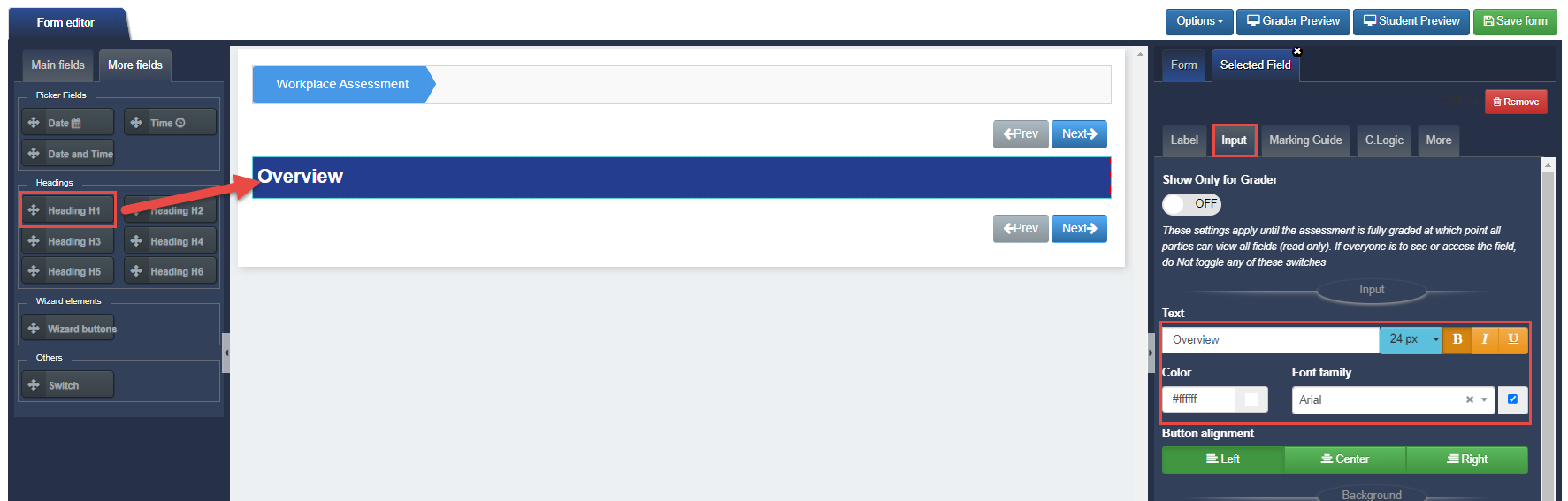

Step 10: Add a Headings 1 field inside the blue column. Click the blue pencil icon to edit its properties. Under the input tab, type the title of the page. You may also change the text colour to make it visible against the colored background:



The defaults settings used are:
Font: Arial
Font Size: 24px
Font Colour: white (#ffffff)

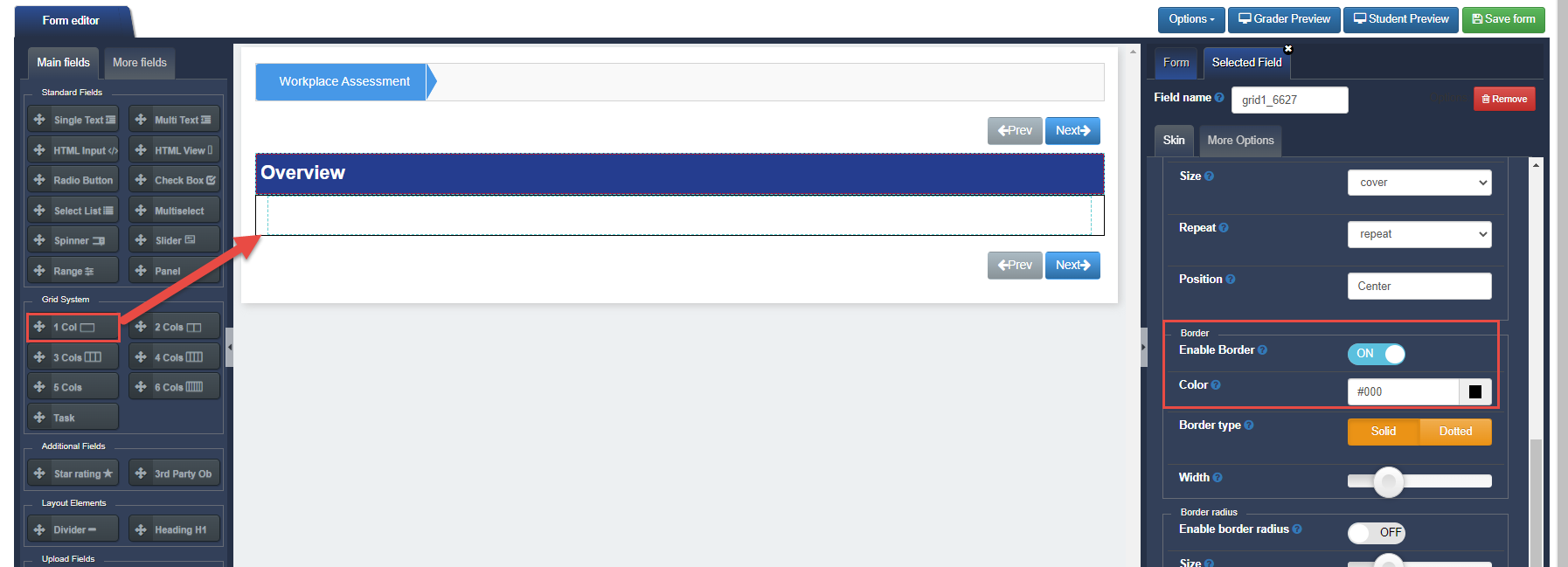

Step 11: Add another single column under the first one. Click the blue pencil icon to edit its properties. On the right panel, scroll to Border and to enable the toggle. This column will serve as your page border and all the elements will be added inside this column.

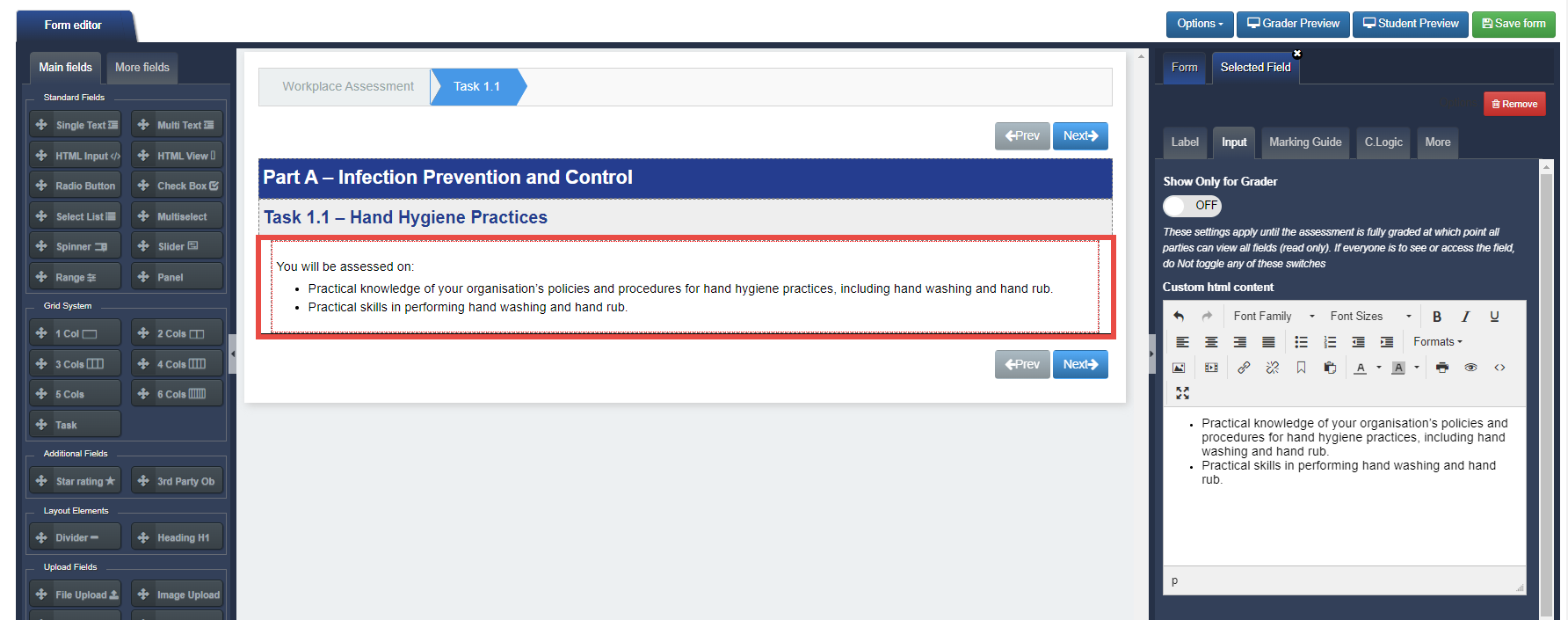

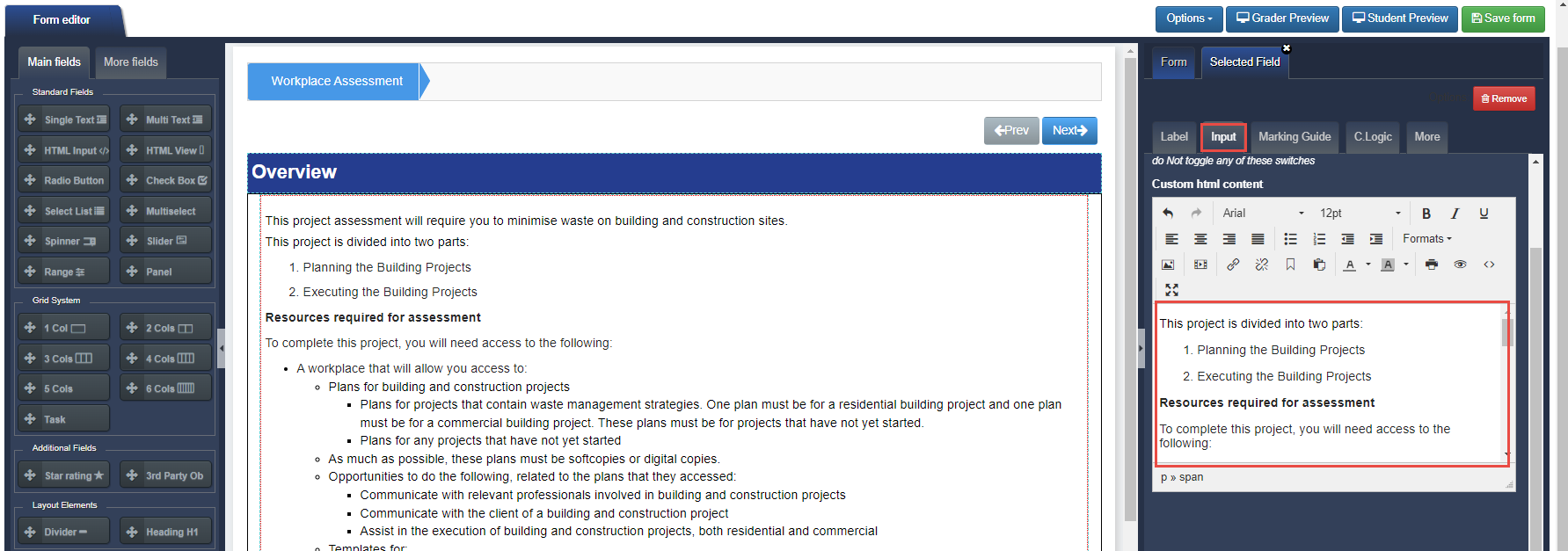

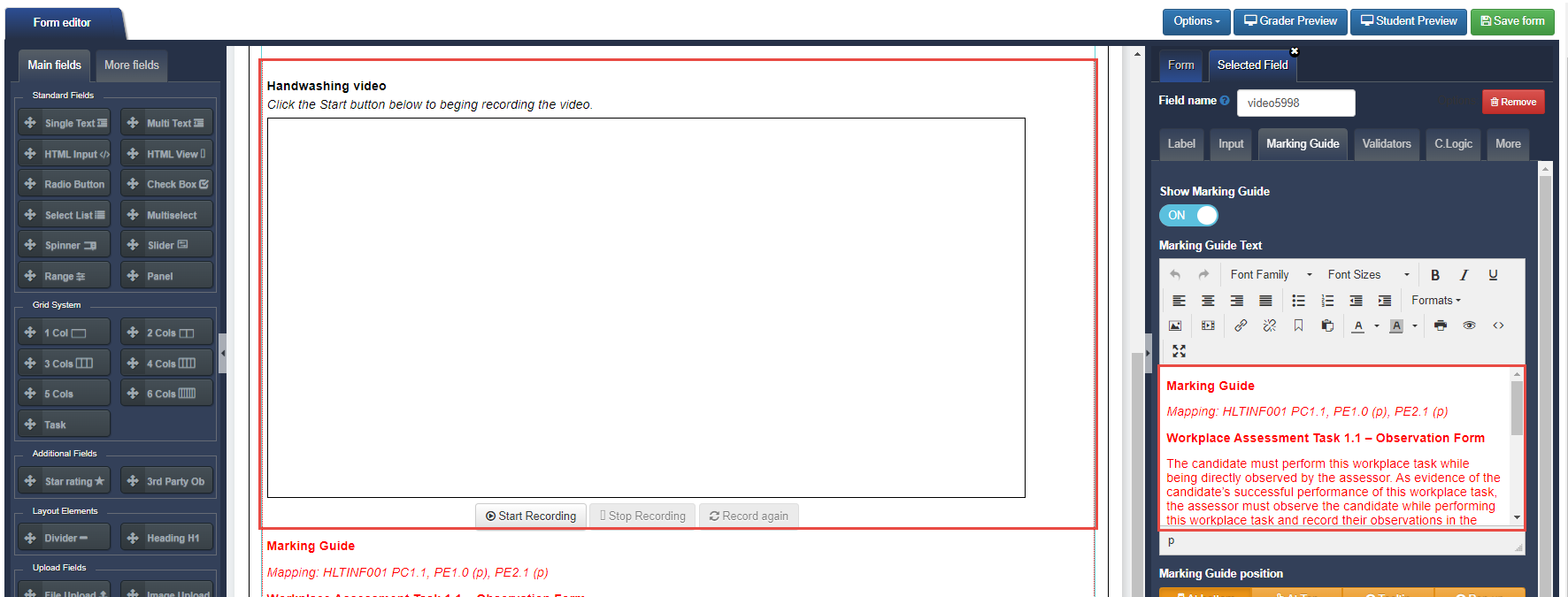

Step 12: Add the necessary fields inside the bordered column. For instructions, an HTML View field is usually added. Edit its properties by clicking the blue pencil icon.



You may edit the content of this field by clicking input. Indicate the content under the space provided.

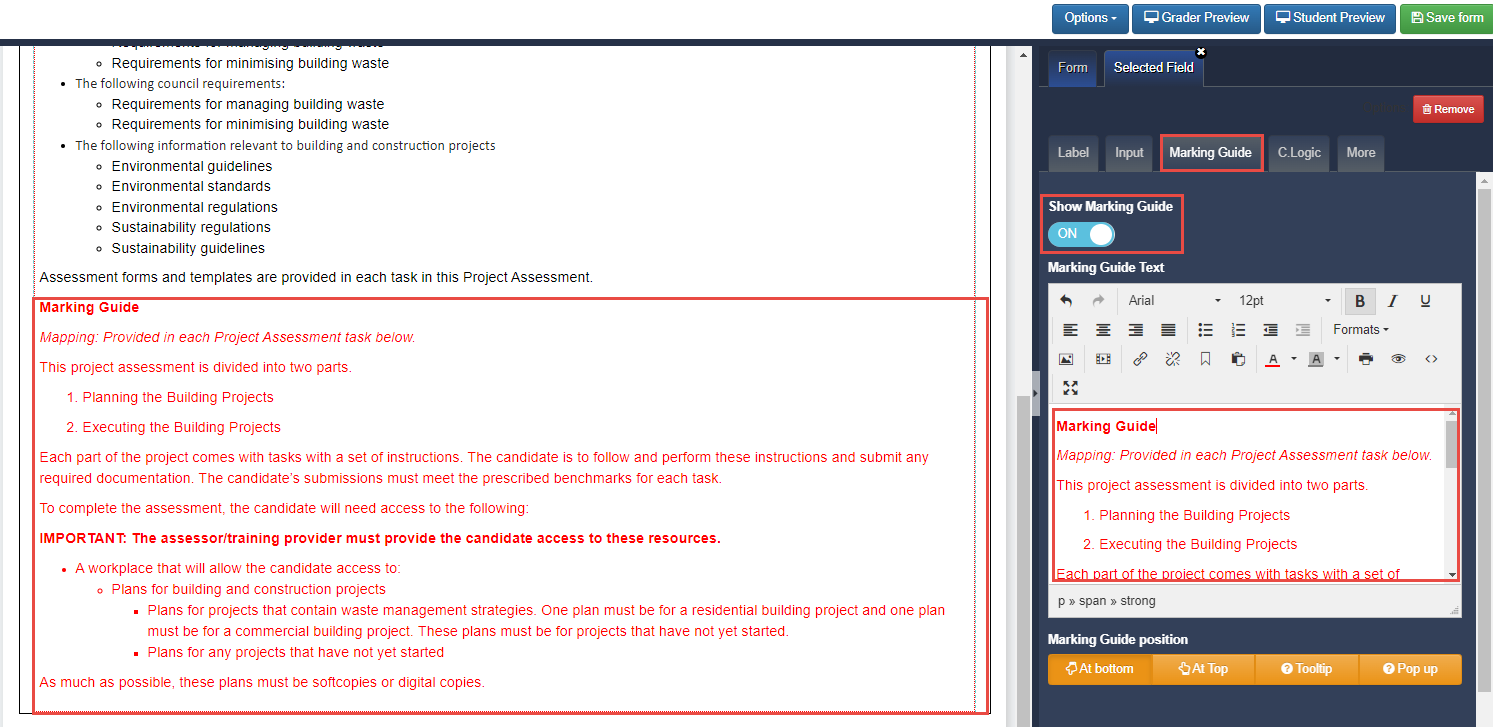

The marking guide can be indicated under the Marking Guide tab. Make sure that the Show Marking Guide toggle is turned on.


The assessor is the only one who can see the marking guide.

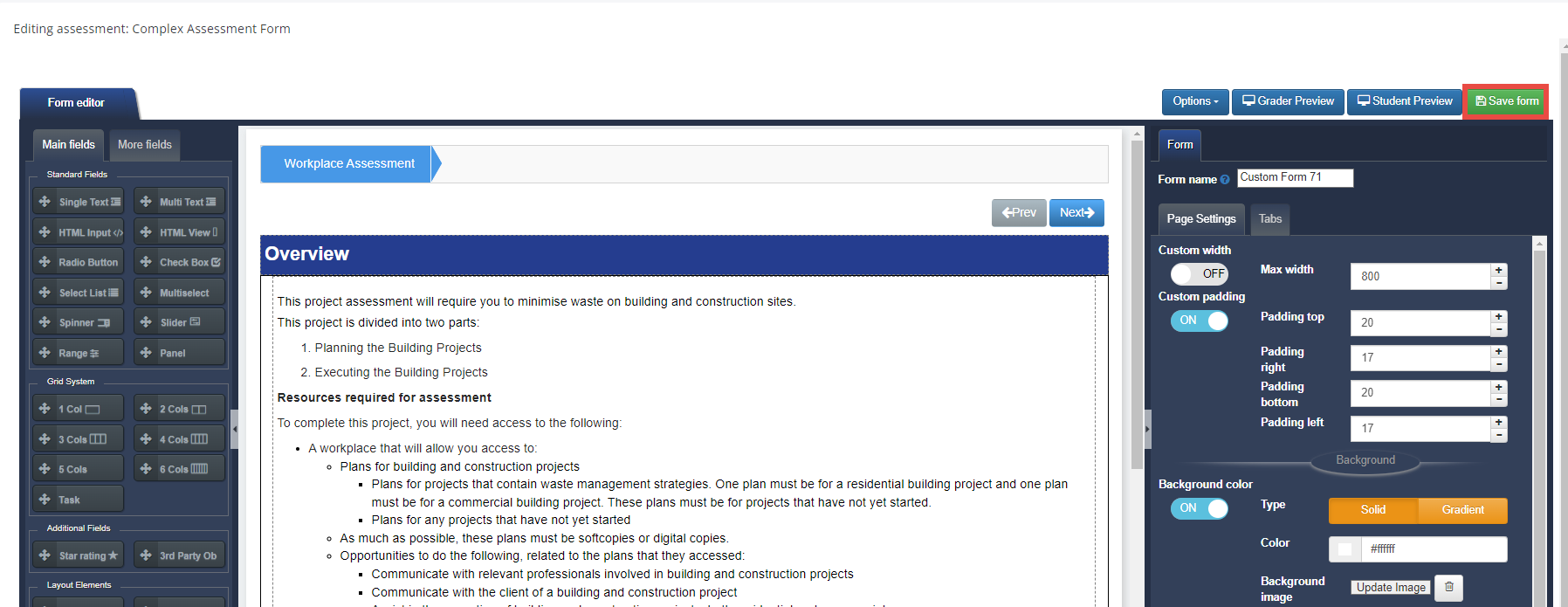

Step 13: Click save form



Setting Up Tabs to be Graded


The steps below detail how to create a tab with items which need to be graded.

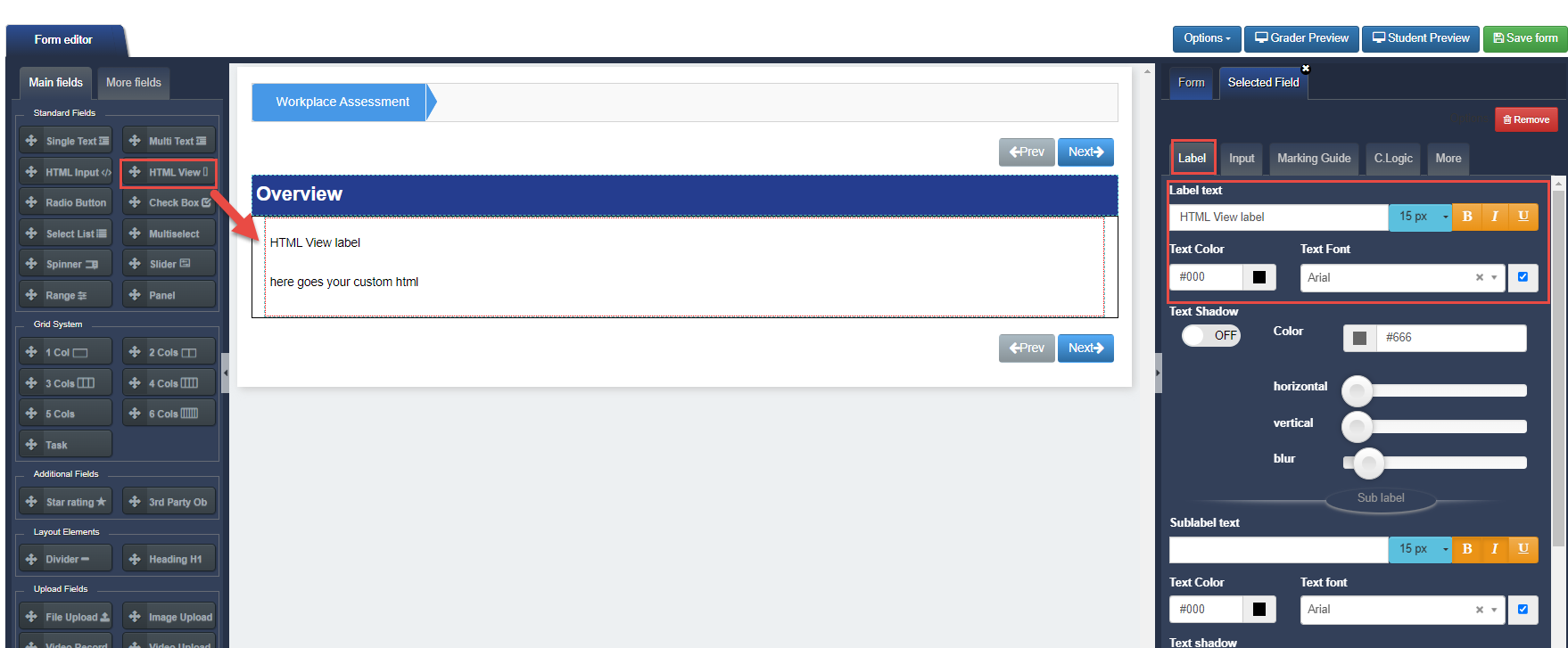

Step 14: Add another tab. Repeat the previous steps. Add all the important instructions needed. You may choose the following fields in creating the task fields.

HTML View field for bulleted instructions


Panel Field for important details such as forms and templates, and important instructions. You may add an HTML View field inside the panel field. To edit its properties, click the blue pencil icon and change the colours as desired.



Upload fields for files, images, and videos to be submitted by the student. You may use the marking guide tab to add marking guides for grading.

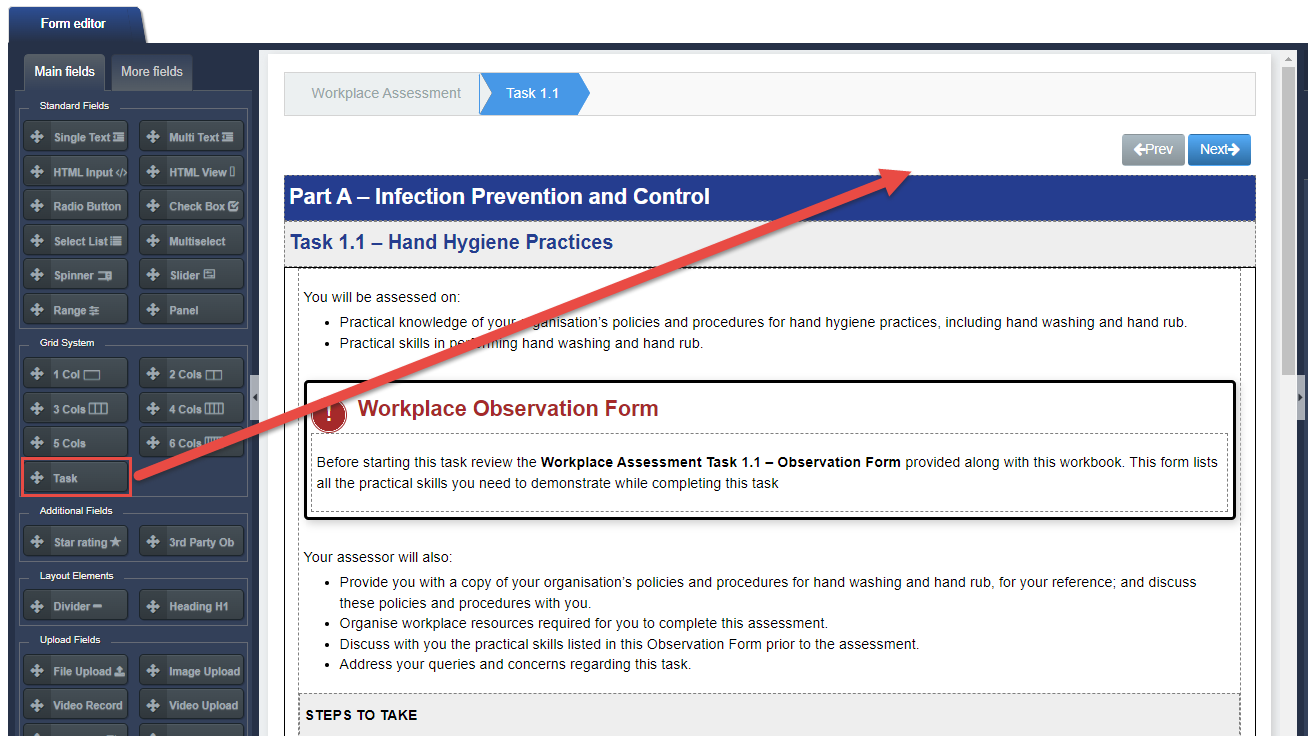

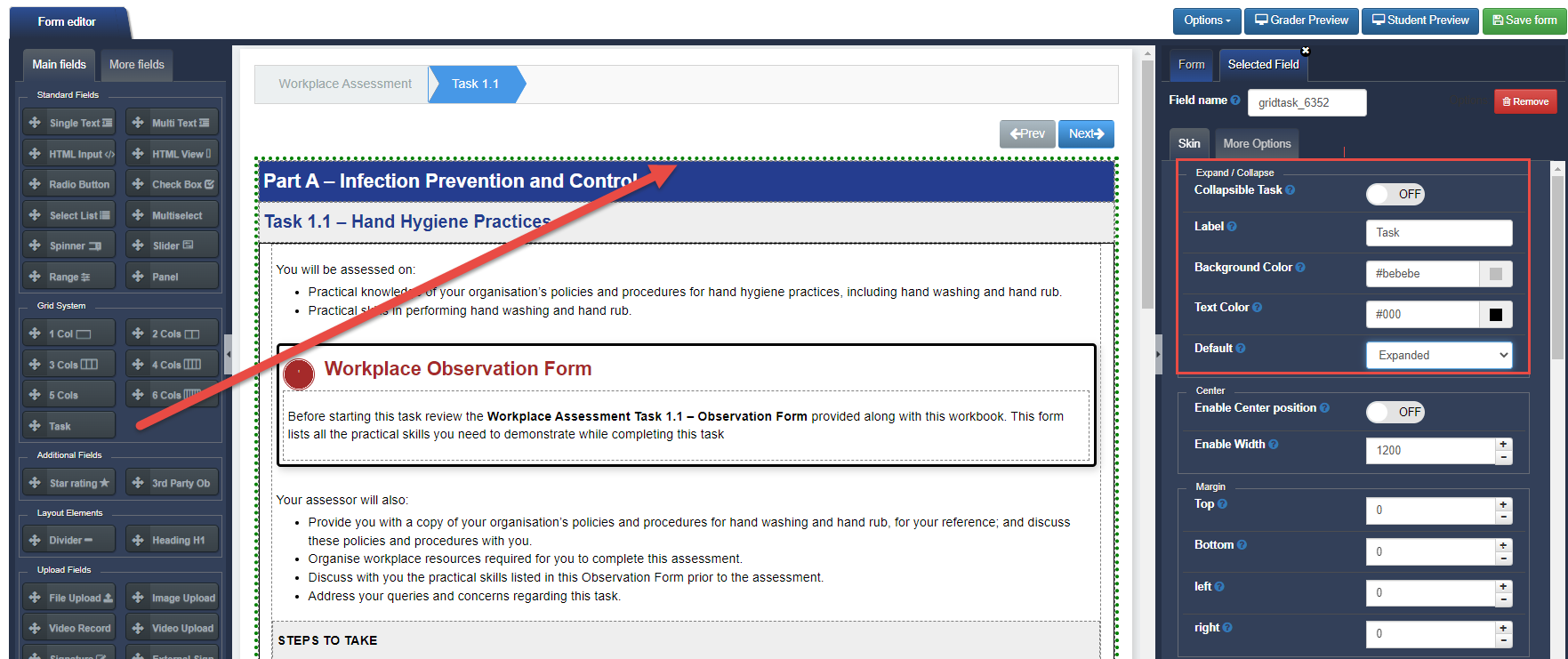

Step 15: To enable this tab to be graded, a task field needs to be added. Choose the Task Field and place between the wizard buttons.

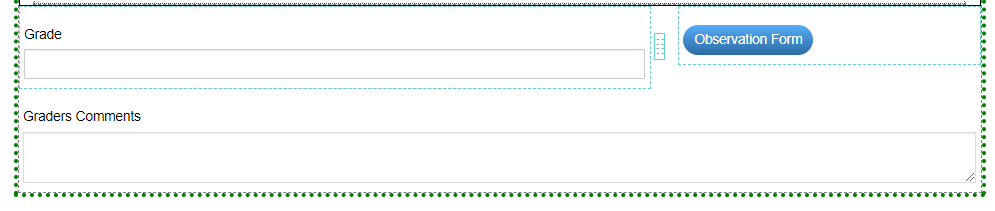

The Task field indicates the graded part of the Assessment Activity.  The elements under Task are Grade, Grade Comments, Observation Form.




 Grade
 This is where the assessor indicates the grade of the student
 Grade Comments
 The assessor may provide comments and guidance for the student in this area
 Observation Form

This is where the pre-loaded assessment checklists and observation forms are linked.

 To link and observation form:
  1. Click the blue pencil icon.
  2. On the right panel under the input tab, choose the observation form you want to be linked from the drop down options. You may also change the name of the observation form.
 During the assessment grading, the assessor simply needs to click the blue button to access the observation form/ assessor's checklist.

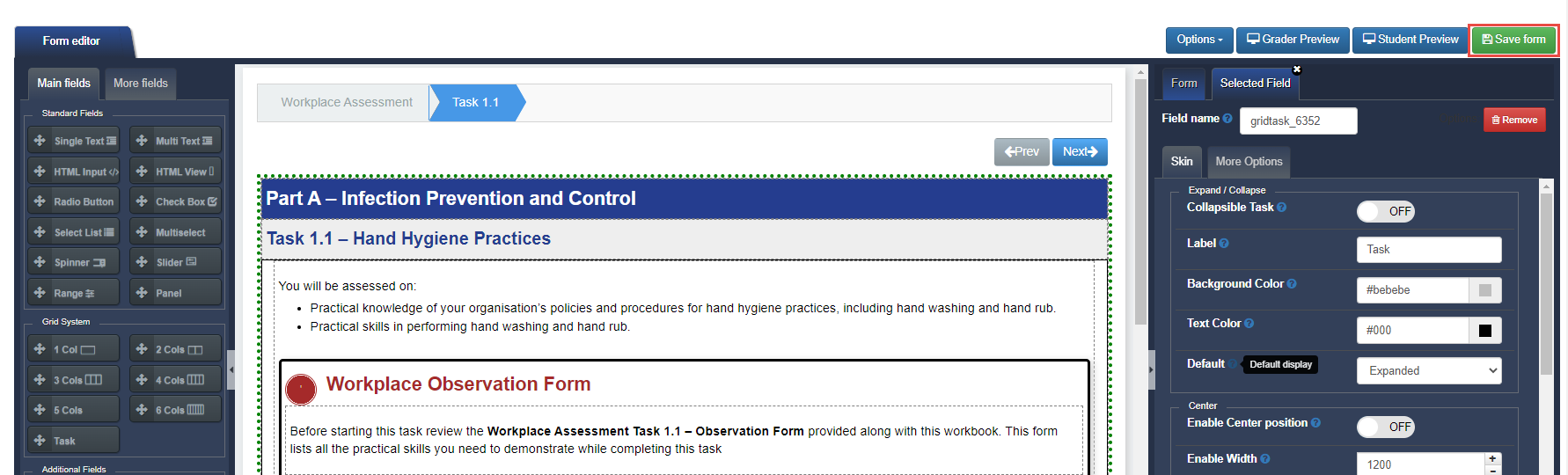

Step 16: Place all the elements inside the task field. You may also edit the properties of the task field on the right panel.



 Collapsible Task
 This toggle sets whether the task field can be expanded or allowed to be collapsible.
 When enabled, an arrow will appear on the task field's label which allows the task field and all the
 elements inside to be hidden. It also enables the label of of the task field.
 Label
 This allows a label to be added in the task field
 Background Colour
 This changes the background colour of the task field label.
 Text Colour
 This changes the text colour of the task field label.
 Default
 This sets the default display of the task field whether collapsed (the elements are hidden) or expanded
 (the elements are shown)


Step 17: Once all the elements needed have been added, click save.



You may add more instructions tab and tabs for grading as needed.

You have now created a complex assessment activity.
